SPECIFICATIONS
LYRIQ V-SERIES

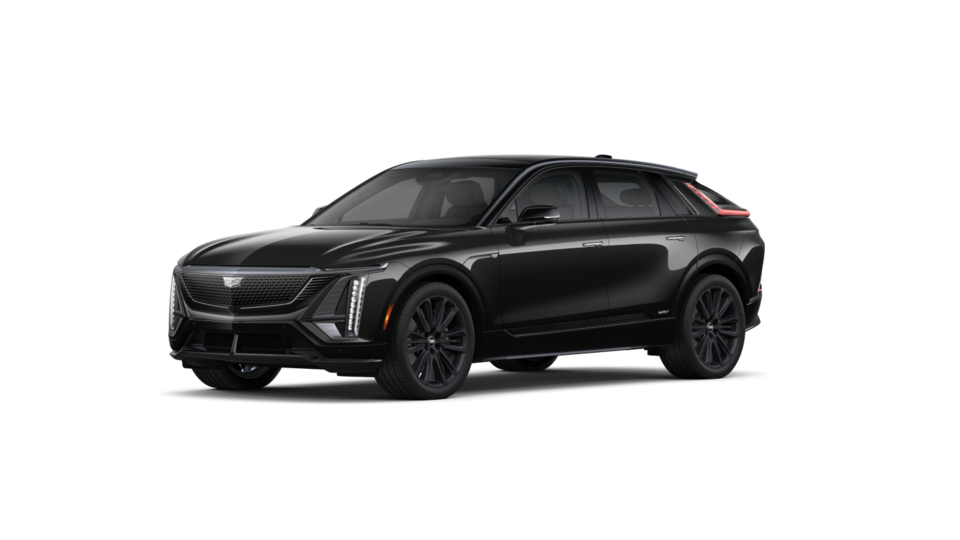

HIGHLIGHTS1

Enhanced performance tuning, and exclusive V-Series badging, delivering a bold fusion of power and sophistication.
Amber sidemarker light & wheel rims are US specification (not available in Europe) & differ on European vehicles.

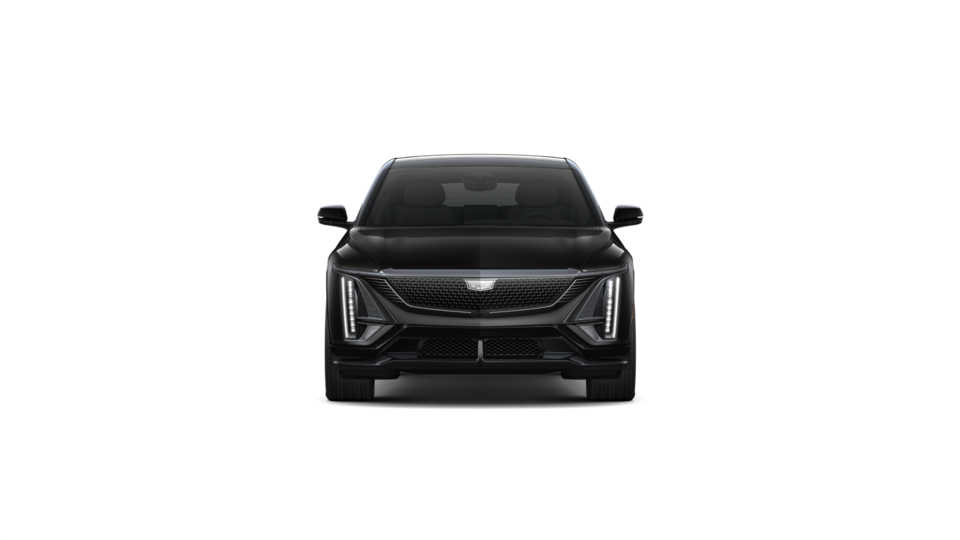

GRILLE DESIGN1

Black Crystal Grille

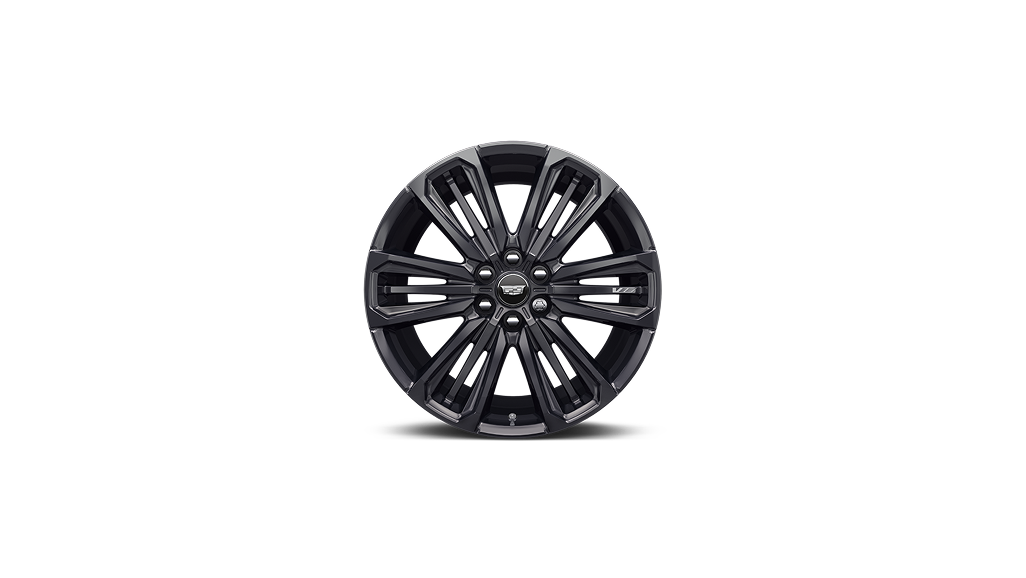

RIM1

22" Triple 6-Spoke Reverse Rim alloy wheels with Satin Graphite finish and Laser-Etched V-Series emblem.
Amber sidemarker light & wheel rims are US specification (not available in Europe) & differ on European vehicles.

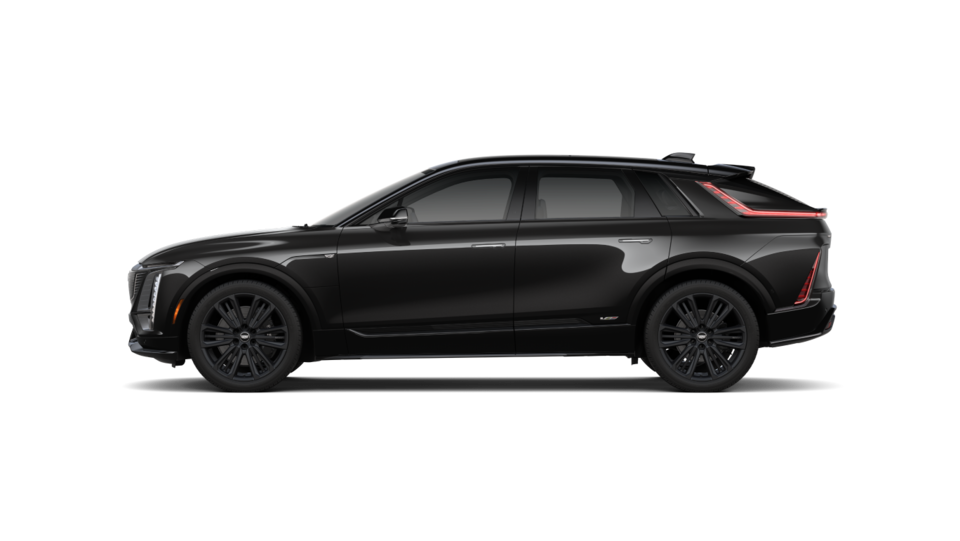

EXTERIOR ACCENTS1

Gloss Black accents, including lower rocker extension and lower fascia trim
INFOTAINMENT
& CONNECTIVITY
Infotainment with curved 33’’ diagonal advanced color LED display2
Rotary controller with jog functionality
Google built-in connected service capability3
AKG™ Studio 23-speaker audio system with Dolby Atmos®3
USB ports4, type-C full-function (3 ports) and charge-only (2 ports)
Apple CarPlay®5 and Android AutoTM6
Wireless phone charging7
5G vehicle connectivity
INTERIOR
& COMFORT
Heated steering wheel
Electrically operated seats
Electrically operated lumbar support (driver & passenger)
Heated seats front & rear
Massage function front (driver & passenger)
Memory seats ( driver & passenger)
Ventilated seats front (driver & passenger)
Nappa leather seat upholstery (optional)
Interior ambient lighting
Laminated acoustic glass front
Defroster for wiper system, windshield
Tri-zone Climate
SAFETY & DRIVER
ASSISTANCE
Augmented Reality Head-Up Display
Airbags8
Dual-stage frontal, seat-mounted side-impact for driver and front passenger; knee for driver and front passenger; head-curtain for all outboard seating positions with rollover protection
Adaptive Headlight System9
Adaptive Cruise Control9
Driver Assistance Package15
Blind Zone Steering Assist9
Buckle to Drive
Enhanced Automatic Parking Assist9
Front and Rear Park Assist9
Forward Collision Alert9
Front Pedestrian and Cyclist Braking9
HD Rear Vision Camera9
HD Surround Vision9
Intersection Automatic Emergency Braking9
Lane Keep Assist with Lane Departure Warning9
LED Reflective Windshield Collision Alert9
Rear Camera Mirror9 (with washer)
Rear Pedestrian Alert9
Safety Alert Seat9
Side Bicyclist Alert9
Tire Pressure Monitoring System9

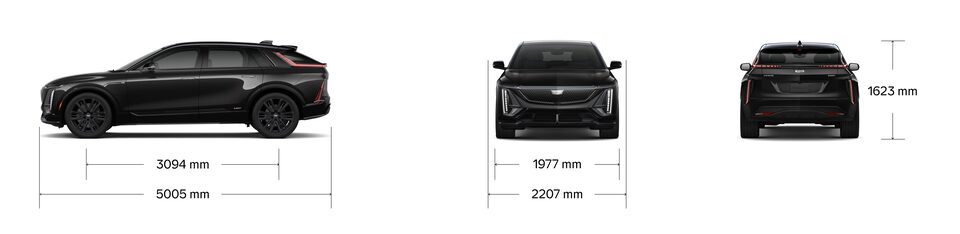

EXTERIOR
DIMENSIONS1

Amber sidemarker light & wheel rims are US specification (not available in Europe) & differ on European vehicles.
INTERIOR
DIMENSIONS
Headroom
980 mm (front)
957 mm (rear)
Legroom
1124 mm (front - max)
1006 mm (rear)
Shoulder Room
1497 mm (front)
1488 mm (rear)
Hip Room
1436 mm (front)
1372 mm (rear)
ELECTRIC DRIVE
System
AWD - 2 drive units with 1 motor each
Motor
Permanent magnet, bar wound
Power10
615hp (458 kW)
0 - 100 km/h
3.3 seconds in Velocity Max
Max speed
230 km/h in Velocity Max
Torque10
880 Nm
BATTERY SYSTEM
Type
Rechargeable energy storage system comprising multiple linked modules
Battery chemistry
Lithium-ion NCMA cathode, blended graphite anode
Battery Rated Energy
91 kWh
Combined electric energy consumption
21.8 kWh/ 100 km
Range and Efficiency10
460 kilometers in combined cycle electric range
CHASSIS
& SUSPENSION
Front and Rear Suspension
5-link independent suspension CDC - Continues Damping Control
Steering Type
Continuously Variable Electric Power Steering (EPS)
Turning Circle (curb-to-curb)
12.1 m
Brake Type
Brembo® performance front brakes
Brake Rotor Size
390 mm (front) FRT Fixed Caliper Disc
345 mm (rear) RR Sliding Caliper Disc
Wheels
Standard 22'', alloy
Tires11
275/40R22, lower profile, self-sealing (22'' wheels)
WEIGHTS
& CAPACITIES
Base Curb Weight – Minimum
2774 kg
Passenger Volume12
2976 L
Cargo Volume12
588 L (behind rear seat)
1687 L (rear seatbacks folded)
Max Towing Capacity13
1587 kg
Gross Vehicle Weight
3200 kg
WARRANTY
Vehicle14
4 years / 100'000 km - whichever comes first
Battery14
8 years / 160'000 km - whichever comes first
